Домой > продукты > машина pcb depaneling > UV Curing Oven Drying Oven

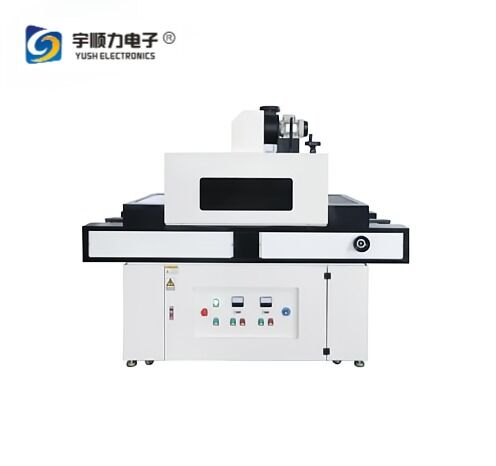

UV Curing Oven Drying Oven

Детали продукта

Место происхождения: Гуандун, Китай

Фирменное наименование: YUSH

Номер модели: ЯС-У1

Условия оплаты & доставки

Количество мин заказа: 1 комплект

Цена: $10,000 / set

Лучшая цена
Выделить:

UV curing oven for PCB

,

drying oven with UV curing

,

PCB depaneling UV oven

Масса:
350 кг
система управления:
инструмент
Скорость конвейера:
100~3000 мм/мин
Количество УФ-излучения:
1 КОМПЛЕКТ
Ультрафиолетовая мощность:
2кВт/комплект
Срок службы УФ-лампы:
1000-1200 час.
Материал конвейера:
Тефлоновый сетчатый ремень
Эффективная ширина:
50-450mm
Охлаждающая зона:
Независимый
Тип двигателя:
Импортирован
Регулировка скорости:
0-2000mm/min
Тип отражателя:
Отражатель высокого света
Цепный материал:
Нержавеющая сталь
Управление лампы:
Отдельный контроль
Высота лампы:
Регулируемый
Масса:
350 кг
система управления:
инструмент
Скорость конвейера:
100~3000 мм/мин
Количество УФ-излучения:
1 КОМПЛЕКТ
Ультрафиолетовая мощность:
2кВт/комплект
Срок службы УФ-лампы:
1000-1200 час.
Материал конвейера:
Тефлоновый сетчатый ремень
Эффективная ширина:
50-450mm
Охлаждающая зона:
Независимый
Тип двигателя:
Импортирован
Регулировка скорости:
0-2000mm/min
Тип отражателя:
Отражатель высокого света
Цепный материал:
Нержавеющая сталь
Управление лампы:
Отдельный контроль
Высота лампы:
Регулируемый
UV Curing Oven Drying Oven
UV Curing Oven Drying Oven
Product Overview
YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.
Key Features
  • Advanced control system with instrument or PLC+touch screen for stable operation
  • UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
  • Abnormal lamp protection device for enhanced safety
  • Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
  • Focus design with imported high-light reflector lamp shade for instant drying
  • Independent cooling area ensures low output temperature for PCBs
  • Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
  • Stainless steel chain transportation with adjustable effective width (50-450mm)
  • In/out board detection function for monitoring board count and transportation
  • Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
  • Individual UV lamp group control with adjustable height settings
UV Curing Oven Drying Oven 0
Technical Specifications
Specifications YS-U1 YS-U2 YS-U3
Transport Teflon mesh belt Stainless steel chain Stainless steel chain
Control System Instrument PLC+touch screen PLC+touch screen
Conveyor Speed 100~3000mm/min 100~3000mm/min 100~3000mm/min
UV Light Quantity 1 set 2 sets 1 set (2 sets optional)
UV Light Power 2Kw/set 3Kw/set 6Kw/set
Weight Approx. 350KG Approx. 420KG Approx. 420KG
